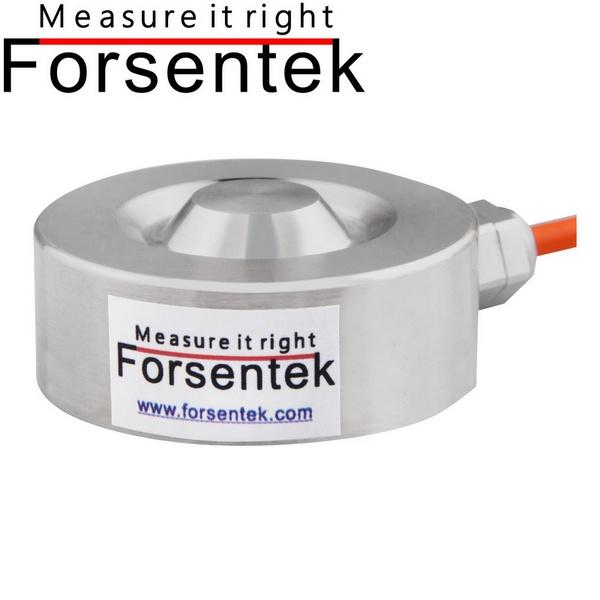

Compression Load Cell 500kg Button Load Cell 1klb Force Transducer 5KN

Product Categories

Forsentek Co., Limited

Contact Now

Name: Compression Load Cell 500kg Button Load Cell 1klb Force Transducer 5KN
Brand: Forsentek
Price: 1 USD

Place of Origin : China

Brand Name : Forsentek

Model Number : FC25-5KN

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1988pcs/month

MOQ : 1pc

Packaging Details : Carton

Certification : CE

Usage : Compression Force Measurement

Type : Compression Load Cell 5kN

Output : Analog Sensor

Structure : Button Load Cell

Contact Now

Compression Load Cell 500kg Button Load Cell 1klb Force Transducer 5KN

Features

Application

Compression Force Load Cell FC25

Compression Load Cell 500kg Button Load Cell 1klb Force Transducer 5KN

Specifications

Capacity	100N / 10kg / 22lb 200N / 20kg / 45lb 500N / 50kg / 112lb 1kN / 100kg / 225lb 2kN / 200kg / 450lb 5kN / 500kg / 1120lb 10kN / 1000kg / 2.2klb 20kN / 2000kg / 4.5klb 30kN / 3000kg / 6.7klb 50kN / 5000kg / 11.2klb 60kN / 6000kg / 13.5klb 100kN / 10000kg / 22.5klb
Rated output/	1.5mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Nonlinearity	±0.5% of the capacity
Hysteresis	±0.5% of the capacity
Nonrepeatability	±0.2% of the capacity
Creep(10min)	±0.1% of the capacity
Safe overload	150% of rated capacity
Ultimate overload	200% of rated capacity
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	385±30 ohms
Output resistance	350±5 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø3*2000mm 4-core shielded
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Dimensions

Compression Load Cell 500kg Button Load Cell 1klb Force Transducer 5KN
